PCIE 3.0 X1 to 6-Ports SATA 3.0 6Gbps Expansion Card L13731
Sale price
$17.95
Regular price $76.28
Skip to product information

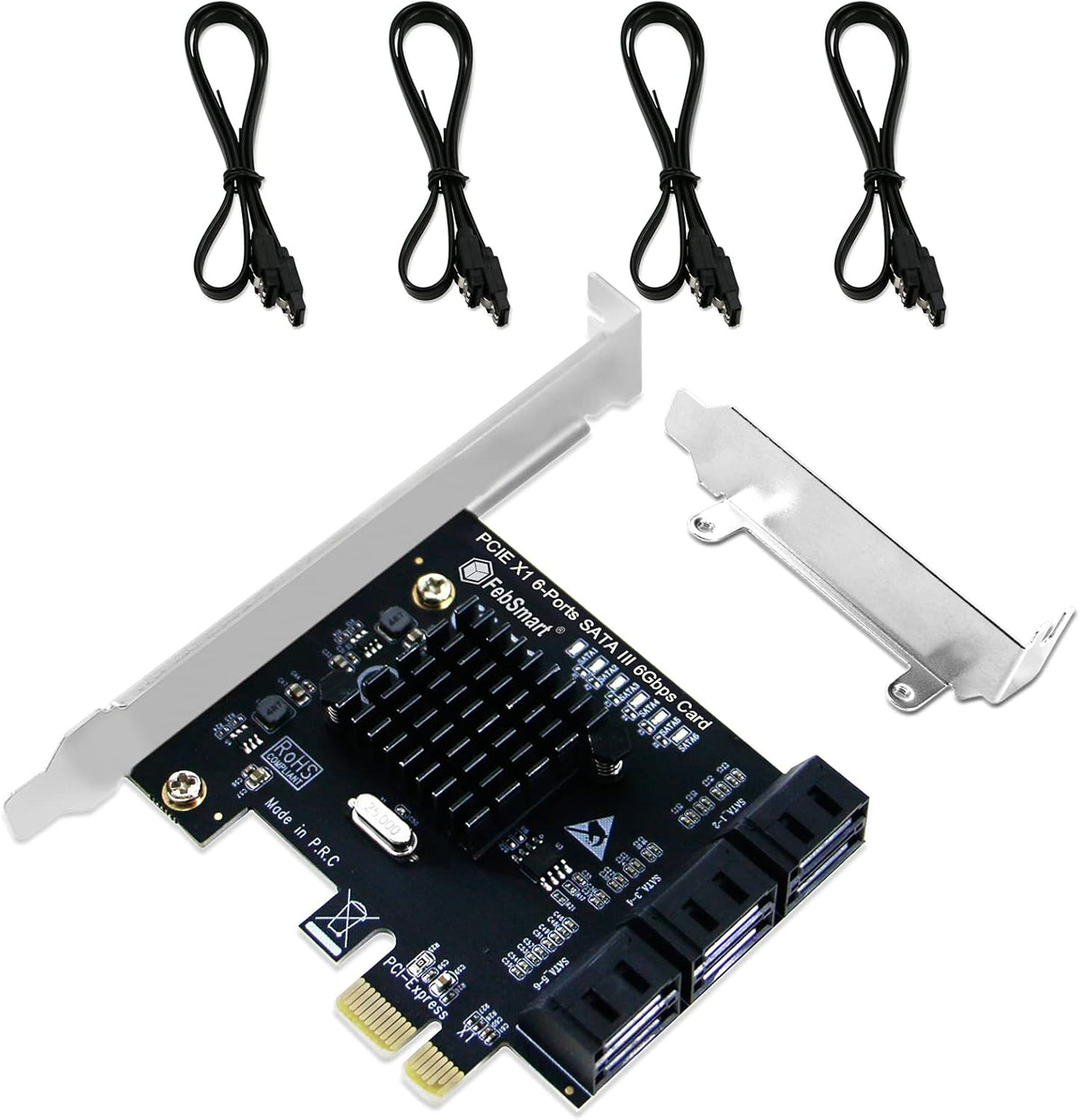

1.The FS-S6X1-Pro is a PCI express 3.0 X1 interface to 6-Ports 6 Gbps max speed SATA 3.0 expansion card. It allows users add 6X Non-Raid SATA 3.0 Storage or AHCI Boot HDD/SSD on desktop PCs, Working Stations, MAC Pros and Network Attached Storage (NAS).
2.Select the ASMedia ASM1166 the most stable Non-Raid PCIE 3.0 SATA controller solution. PCIE 3.0 X1 interface provide 8Gbps total bandwidth. Each SATA 3.0 port will get 6Gbps max speed for AHCI boot and storage.
3. Plug and Play on Windows Server 2019, 2016, 2012R2, 2012, 2008R2, 2008, 2003R2, 2003 (32/64), Windows XP, Vista, 7, 8.x, 10 (32/64bit), MAC OS 10.4.x, 10.5.x, 10.6.x, 10.7.x, 10.8.X, 10.9.x, 10.10.x, 10.11.x, 10.12.x, 10.13.x, 10.14.x, 10.15.x and most of Linux kernel systems.
4.Compliant with Serial ATA(SATA) Revision 3.1 specifications, auto switch to SATA 3.0 speed 6Gbps max. Backward compatible with SATA 1.0 and SATA 2.0. Support PCIE 1.0,2.0,3.0,4.0 protocol on motherbaord PCIE X1, X2, X4, X8, X16 slot.
5.Warning: 1. This SATA card was set on AHCI Boot mode, make sure now PCs SSD/HDD in AHCI Boot Up mode or will report Blue Screen Death.2. Please make sure users power supply unit (PSU) can provide 6X max SATA interface power connector. 3. Slim PCs need user change to low profile bracket.
PCIE 3.0 X1 to 6-Ports SATA 3.0 6Gbps Expansion Card L13731
Sale price
$17.95
Regular price $76.28
Shipping calculated at checkout.
1.The FS-S6X1-Pro is a PCI express 3.0 X1 interface to 6-Ports 6 Gbps max speed SATA 3.0 expansion card. It allows users add 6X Non-Raid SATA 3.0 Storage or AHCI Boot HDD/SSD on desktop PCs, Working Stations, MAC Pros and Network Attached Storage (NAS).
2.Select the ASMedia ASM1166 the most stable Non-Raid PCIE 3.0 SATA controller solution. PCIE 3.0 X1 interface provide 8Gbps total bandwidth. Each SATA 3.0 port will get 6Gbps max speed for AHCI boot and storage.
3. Plug and Play on Windows Server 2019, 2016, 2012R2, 2012, 2008R2, 2008, 2003R2, 2003 (32/64), Windows XP, Vista, 7, 8.x, 10 (32/64bit), MAC OS 10.4.x, 10.5.x, 10.6.x, 10.7.x, 10.8.X, 10.9.x, 10.10.x, 10.11.x, 10.12.x, 10.13.x, 10.14.x, 10.15.x and most of Linux kernel systems.
4.Compliant with Serial ATA(SATA) Revision 3.1 specifications, auto switch to SATA 3.0 speed 6Gbps max. Backward compatible with SATA 1.0 and SATA 2.0. Support PCIE 1.0,2.0,3.0,4.0 protocol on motherbaord PCIE X1, X2, X4, X8, X16 slot.
5.Warning: 1. This SATA card was set on AHCI Boot mode, make sure now PCs SSD/HDD in AHCI Boot Up mode or will report Blue Screen Death.2. Please make sure users power supply unit (PSU) can provide 6X max SATA interface power connector. 3. Slim PCs need user change to low profile bracket.

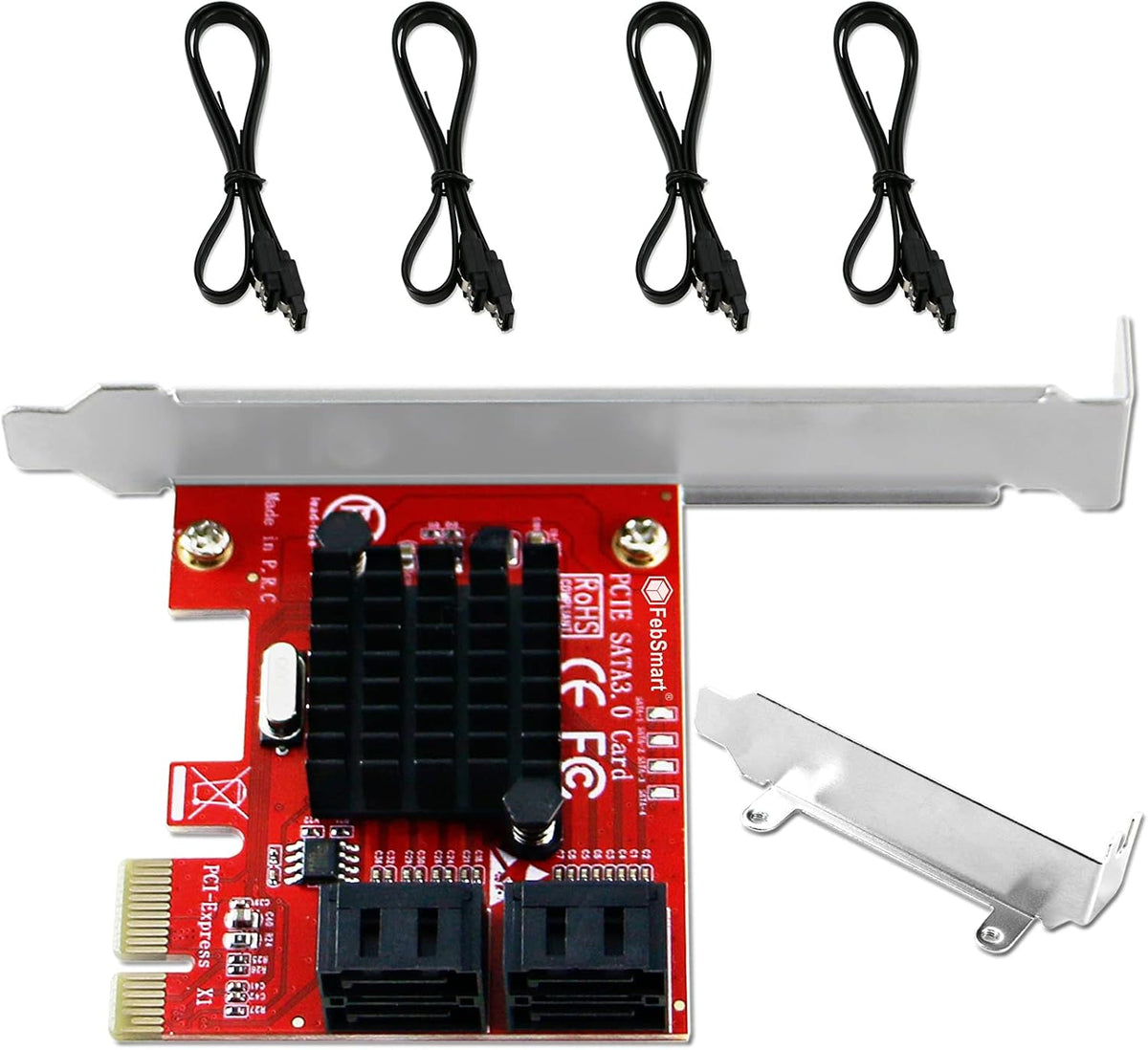

| FS-S6X1-Pro | FS-S4-Pro | FS-S6-Pro | |
|---|---|---|---|
| Max Speed | 6Gbps | 6Gbps | 6Gbps |
| SATA Standard | SATA III | SATA III | SATA III |
| SATA Ports | 6-Ports | 4-Ports | 6-Ports |
| Connect Type | PCIE 3.0 X1 | PCIE 3.0 X1 | PCIE 3.0 X4 |
| Total Banwidth | 8Gbps | 8Gbps | 16Gbps |
| Boot Mode | None/AHCI | None/AHCI | None/AHCI |
| Major Chipset | ASMedia ASM1166 | ASMedia ASM1064 | ASMedia ASM1166 |
| Compatible System | Windows,MAC,Linux | Windows,MAC,Linux | Windows,MAC,Linux |
| Compatible PCs | Standard Size and Slim Size PCs | Standard Size and Slim Size PCs | Standard Size and Slim Size PCs |
